solidLib package

Submodules

solidLib.assortment module

solidLib.assortment.bin(x: float, y: float, h: float = 67)

standardized container

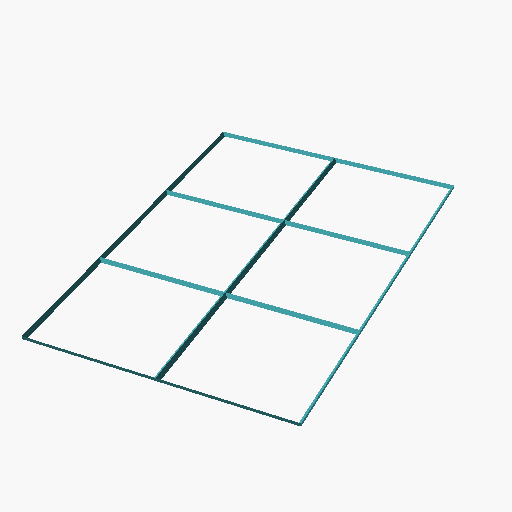

solidLib.assortment.grid(x_dim: int, y: int, w: float = 3, h: float = 1.5, fillet: bool = False)

generate a grid of (flattened) triangles with or without fillet

the generated grid is x by y in size with a gridspace of size dim, the triangles used for the base structure is given by their height and width

solidLib.assortment.grid_inv(x: float, y: float, w: float = 3, h: float = 1.5, fillet: bool = False)

solidLib.assortment.toolinlay1(height: float, *args, r_tool: float = 7, inset: float = 4, maxh: float = 67)

creates a tooltray for alex container bins (2x3)

Parameters

• height – height of inset above lower bin

• inset – depth of inset

solidLib.assortment.toolinlay2(height: float, r_tool: Union[float, Iterable[float]] = 7, inset: float = 4, inset_tool: float = 3, maxh: float = 67, wall: float = 2)

creates a tooltray for alex container bins (2x3)

Parameters

• height – height of inset above lower bin

• r_tool – toolspace radius as float or list of floats

• inset – depth of toolinlay inset

• inset_tool – depth of additional toolspace inset

• maxh – system height restriction

solidLib.primitives module

solidLib.primitives.pill(ps: List[List[float]], r, segments: int = 36)

create a pill around given points

solidLib.primitives.rcube(dim: Iterable[float], radius: float)

creates a cube with rounded corners

Parameters

• dim – cube dimensions to base box on.

• radius – box radius.

• segments – circular object segments

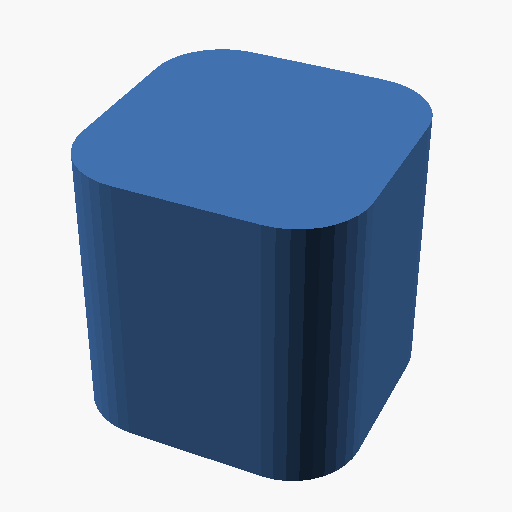

solidLib.primitives.rfcube(dim: Iterable[float], r: float)

creates a round box with radius r and flat top/bottom

Module contents

class solidLib.settings

Bases: object

global dolidLib settings

height = 67

raster = 59

segments = 36
